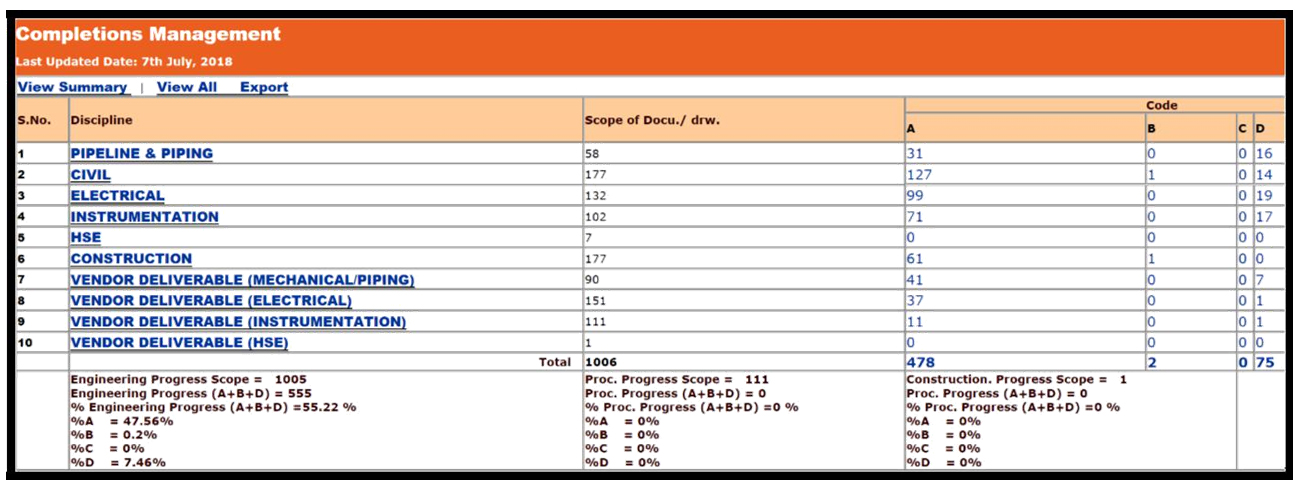

Construction Management
Benefits:

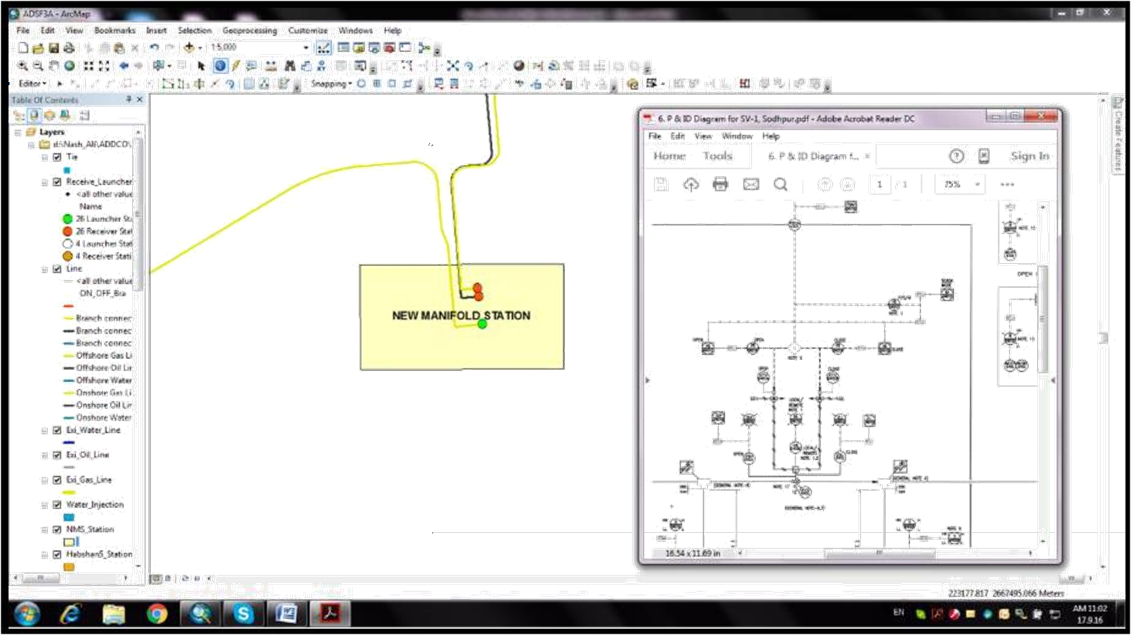

Asset Management

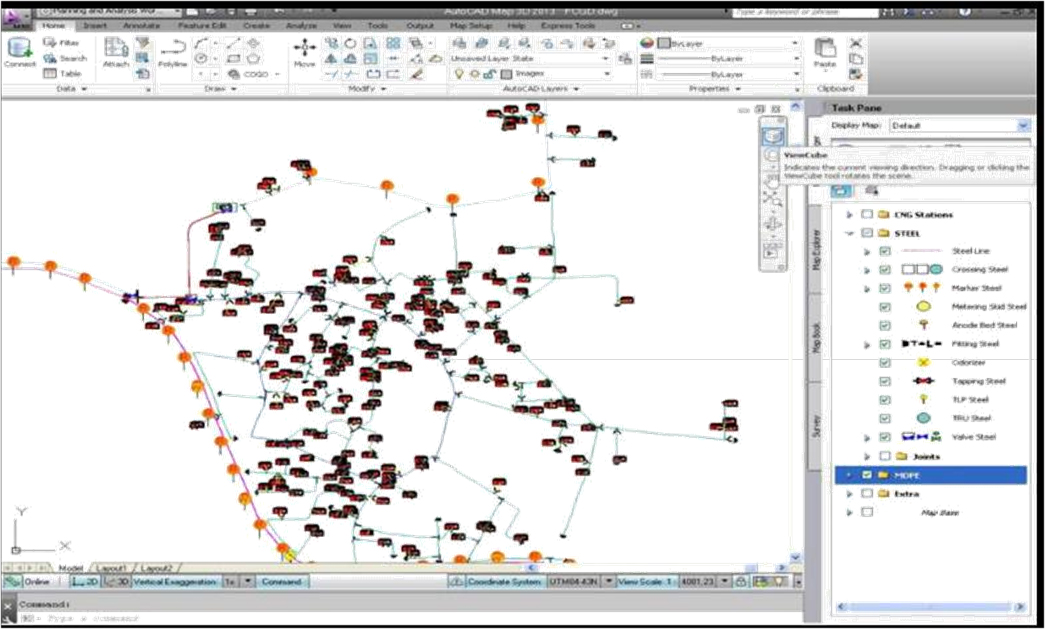

Mapping of all CGD Assets including Joints, Valves, Fittings, Regulators, Stations Using GPS / TS, the asset coordinates would be captured. Asset specifications would be entered along with it's unique ID.

Benefits:

• All Assets in a single Application
• Search Assets along with their specifications
• Alerts for maintenance schedules
• Alerts for warranty renewals

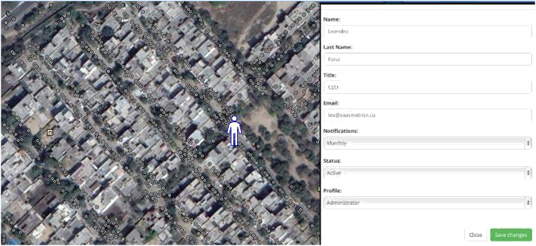

Customer Mapping

Handheld based form for Capturing Customer Data.

Device can capture Barcode, GPS and send the form using GPRS tthe Application.

Each BP/CA number would be associated with Valve(s).

Benefits:

• Each Customer would be linked the network
• Useful for sending alerts and messages from the Applications
• List customers from the application based on images/GA/Area/Block/Apartment
• Thematics having distribution of customers, CNG stations, Commercial est.

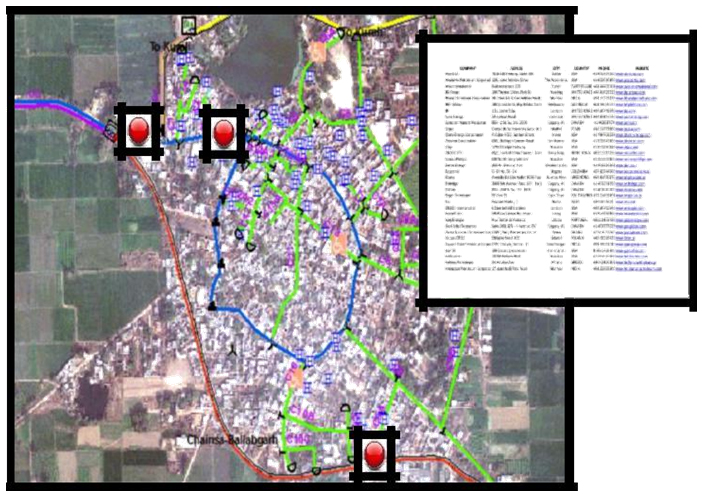

Safety & Outage Management<

Manage Planned Outages and Unplanned Outages Select Valves tbe closed for a planned outage Get list of customers affected. Send SMS/Email to Customers

Features

• Alert Management

• Capturing Alerts
• Mark alert location

• Emergency Response

• Identifying valves to be closed
• Identifying customers Affected
• Notify customers
• Resolving and status updates

• Reports

• Outages

• Active alerts

• Pending alerts

• Resolved alerts

• Affected customers
• Outages in last week, month etc

• Search / Query

• Date

• Statues wise

• Spatial Search (Draw and buffer) o Search results

• Affected customers

• Closed Valves

• Resolved time

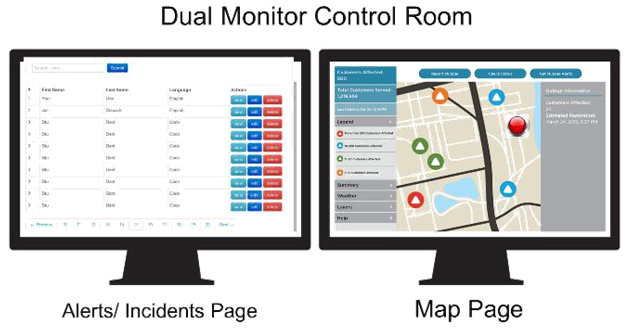

Emergency Response Control panel

Operator receives call for support from Customer/Station/Control Room.

Logs the details in the database. Locates the location on the GIS interface panel by searching the BP/CA number, Valve ID or location address.

Reports the response tthe nearest Control Room, Authorities.

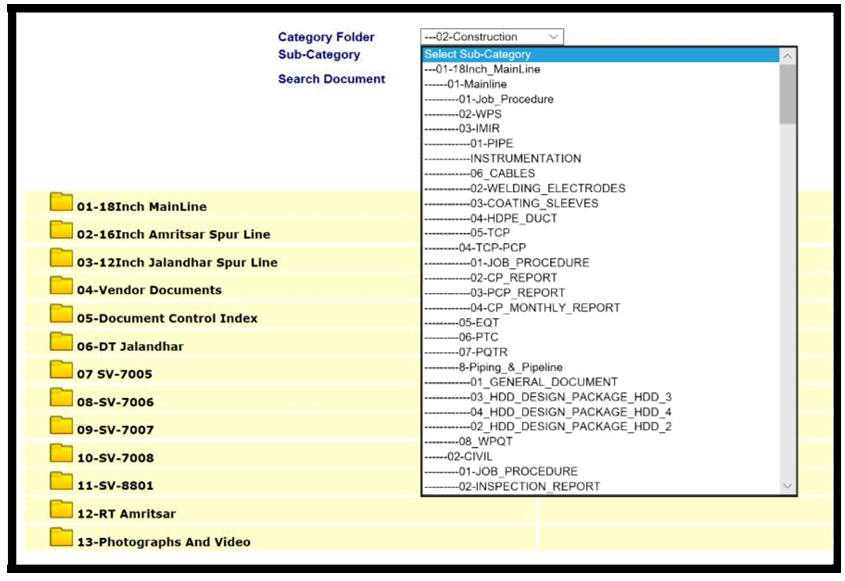

Document Management

All project related documents, whether, progress reports, test reports or specification and procedures are linked tthe relevant reports. These are alsavailable in a central document online database called 'Documentation'. Each document is accompanied with unique meta tags that can make a specific search easier later. The following are covered under this section.

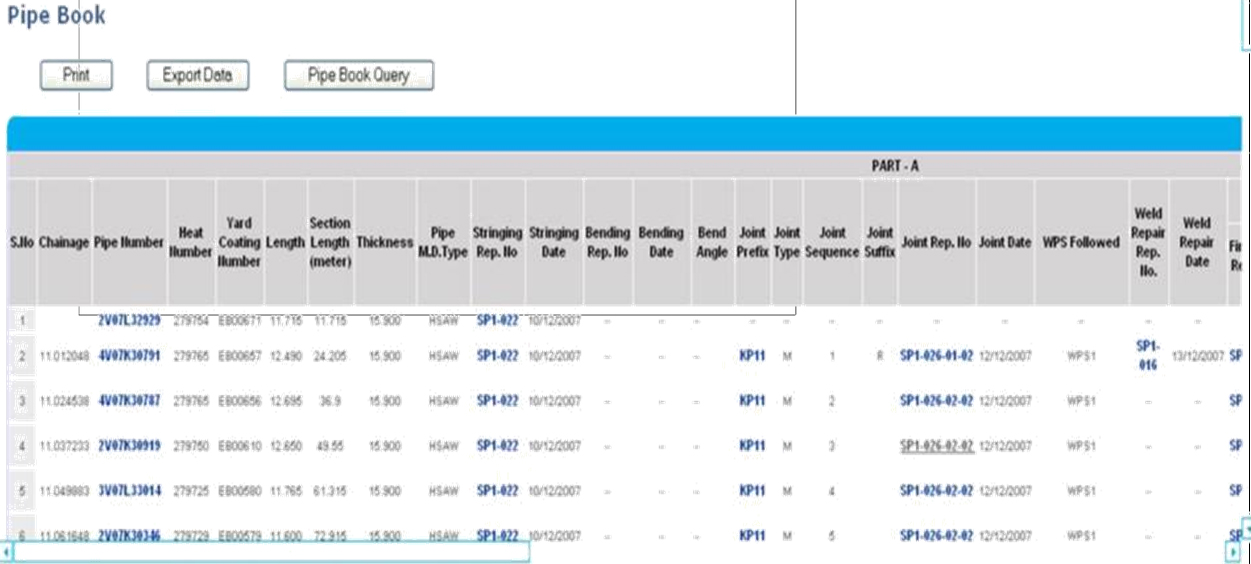

• Pipe information (Manufacturing history, inspection documents, test certificates of pipes and plates).
• Pipe reconciliation statements
• Material acceptance (Joint coating material manufacturers test certificates).
• Manufacturers test certificates and site qualification test reports like filler material, electrode, epoxy etc.
• Equipment data sheets and test certificates.
• Procedure reports. Approved procedures, job procedures, welding procedures specification and qualification, QAP's and ITP's for all pipeline activities including terminals, SV stations, IP stations etc. All construction activity reports including crossings.
• The EDMS module is searchable using metadata like category, sub category, type of document, vendor, material, remarks and document number.

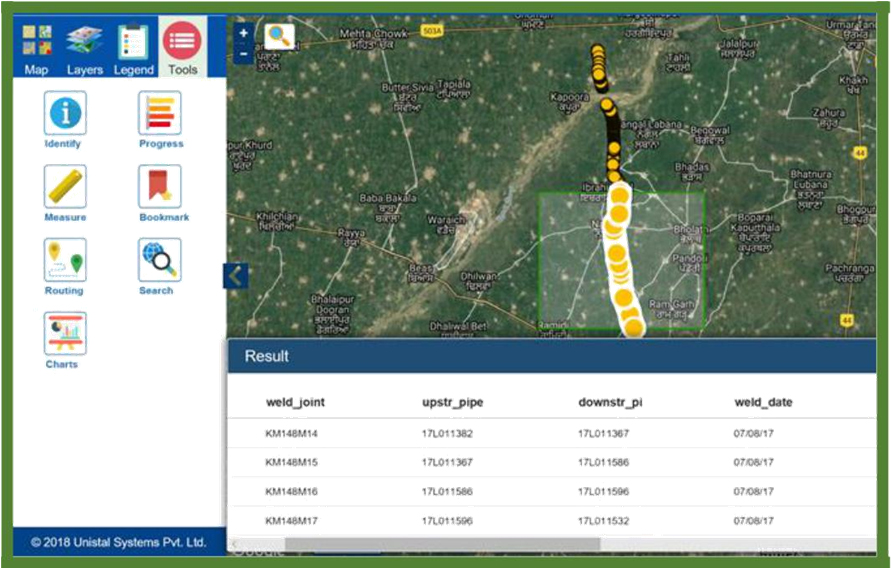

Field Survey & Mapping

Adequate manpower, equipment and field experience would be facilitated in locating and identifying pipeline related features and capture them, including coordinates of each joint and attach relevant attributes to them as per the construction records.

Establish Ground Control Points GeReference Satellite Imagery Develop Base Map of the Region Underground Detection of Steel Map the planned route on GIS

Capture Coordinates for;

• Pipe Joint (Steel)

• MDPE Pipe Bonds

• City Gate Station

• CNG Stations with o Gas Grid o Gas Dryer

• Gas Compressor o Priority Panel

• Storage Cylinder Cascade o Dispensers

• DRS/ MRS

• Valve

• TEE / Coupler / Saddle

• TF / Regulator

• Meter (Customer)

• Commercial / Industrial / Domestic

• TLP / OFC Pits

• Crossings

• Roads/ Canals/ Power Lines/ Water Bodies

• Disaster Management

• Restricted areas/ Police Stations/ Fire Stations/ Hospitals
